Name: Avdiivka coke and chemical plant
Location: Avdiivka, Donetsk Oblast
CEOBS database ID: 10155
Context
Avdiivka coke and chemical plant was the largest coke production facility in Europe, producing a variety of related chemicals from the industrial process. In addition, the plant provided thermal and electrical energy to the town of Avdiivka. Avdiivka has been largely destroyed and most of its population has left, many of whom were workers at the facility.
Timeline of key incidents
Damage to the plant has been reported throughout the invasion, with frequent incidents affecting Avdiivka.1 Conflict-linked damage pre-dates February 2022, as the plant’s proximity to the frontline since 2014 has seen shelling and environmental harm. The site was temporarily occupied between April and July 2014.
13th March 2022

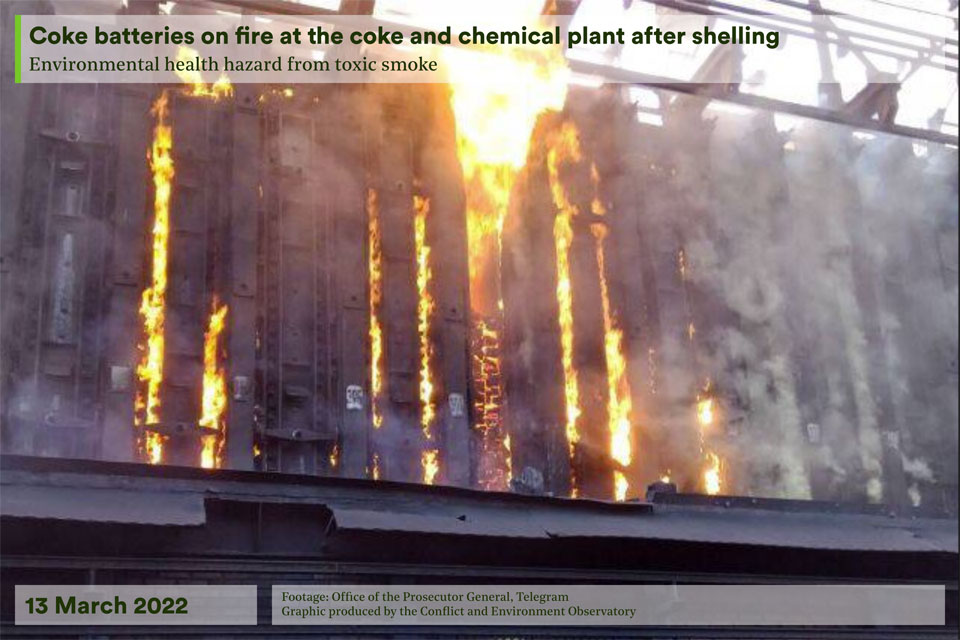

Following repeated shelling, the plant owners MetInvest reported damage to coke, tar-processing and coal preparation workshops, a warehouse, a transfer elevator and a conveyor. Social media footage showed a workshop fire with a large smoke plume, and damage to an elevator.
12th September 2022

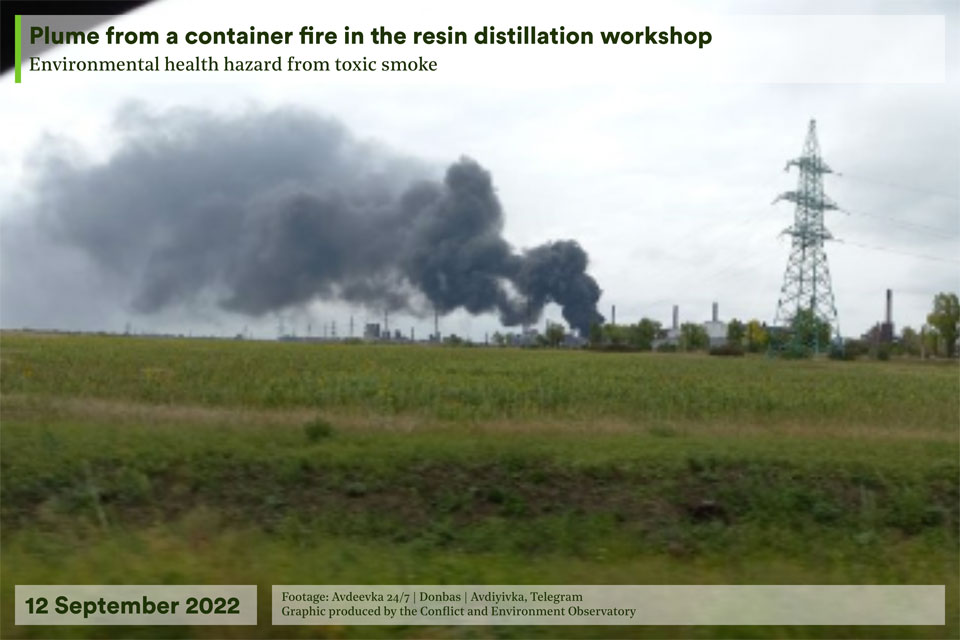

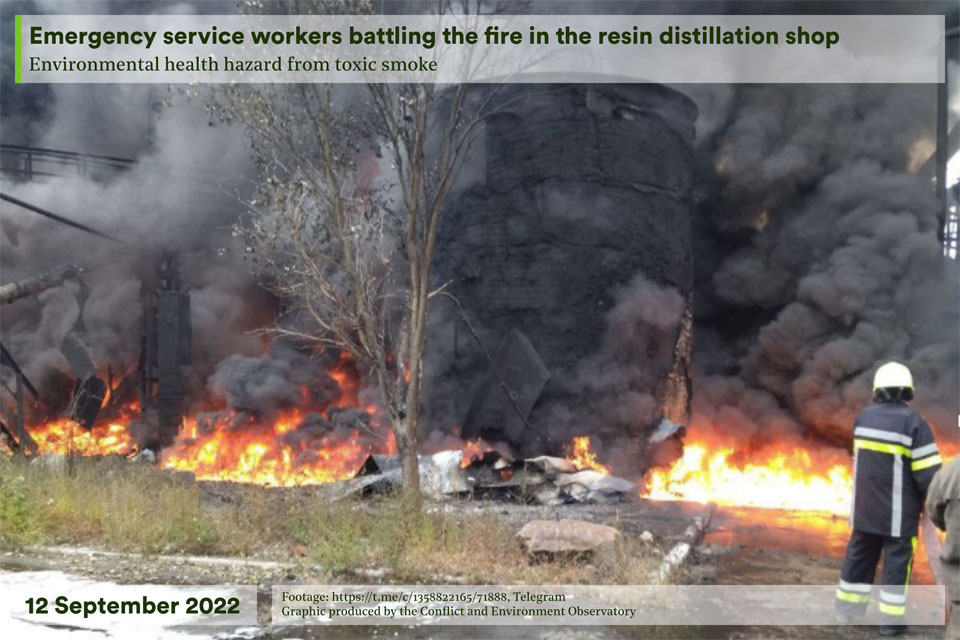

A large plume of dark smoke emitted from a storage container and liquid burning on the ground were likely to have been caused by the resin distillation shop being set alight. The burning materials were likely coal tar or another heavier liquid or resin.
28th September 2023

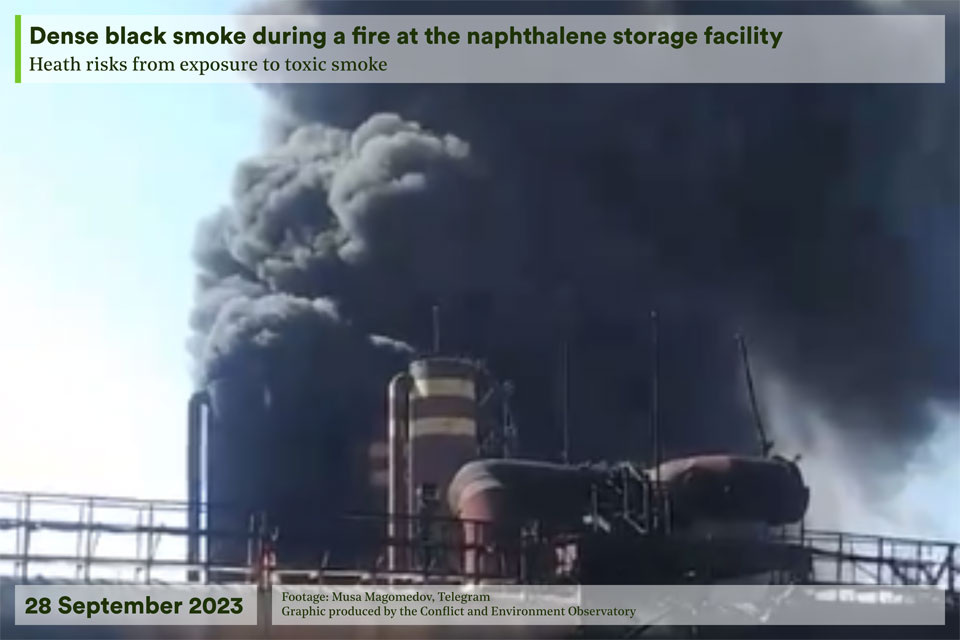

A rocket reportedly hit the naphthalene storage facility,2 leading to a fire that produced dense black smoke.
An intensive period of damage occurred between October 2023 and March 2024 but is not presented here as it falls after our September 2023 operational security cut-off. We are tracking these incidents and hope to update this documentation when appropriate.
Damage assessment
Combat has caused significant physical damage across the facility; at least 19% of its built structures had been destroyed by the end of September 2023, based on Synthetic Aperture Radar analysis.3 CEOBS’ analysis of social media and optical satellite imagery has identified 30 instances of direct damage. This extends across the site, including the furnaces, thermal power plant, various workshops, wastewater treatment facility, and the tailing piles where active fighting took place.
Environmental harm assessment
The shelling of the plant and surrounding area will have left residues from military materials and resuspended or re-mobilised legacy contamination; previous studies had identified a range of hazardous air pollutants that will have been deposited on and around the site.4 Discharges from damaged and leaking storage containers, coke furnaces and key workshops will add to the effects of legacy contamination on soils and groundwater. The damage assessment revealed a number of destroyed buildings at the wastewater treatment facility; the impact on the levels of contamination in the wastewater ponds and any additional risks to the surrounding environment are unclear. Some harm reduction measures were undertaken by staff at the plant, this included the removal of some flammable or dangerous chemicals.

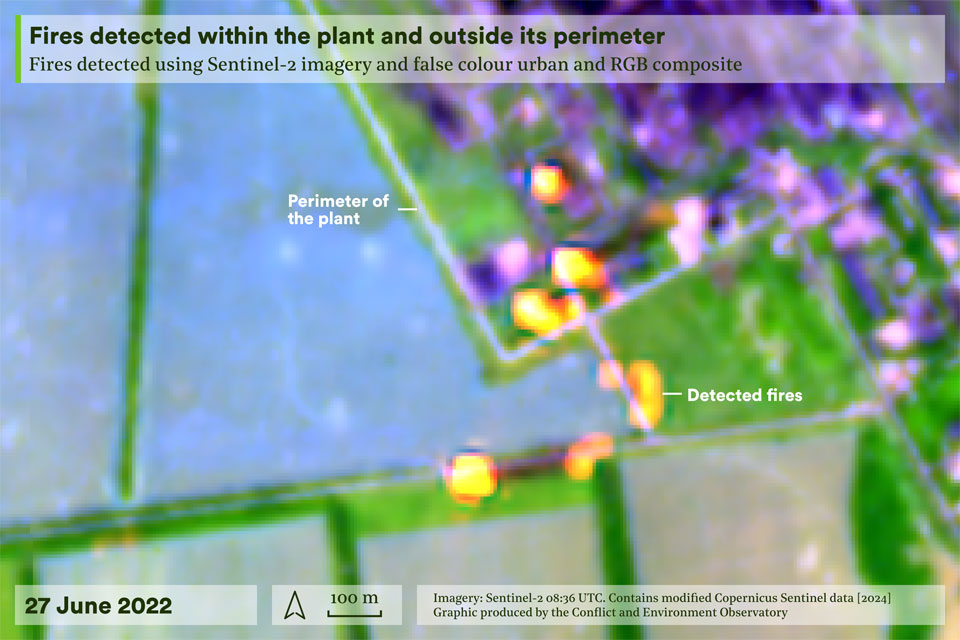

Fires at the site have generated considerable acute exposure risks to toxic air pollutants; two of the key events described here produced dense smoke from the combustion of various fossil fuel derivatives. Naphthalene is a carcinogenic PAH and pesticide, and inhalational exposure can cause respiratory distress.
Longer-term implications
Because of the plant’s occupation and proximity to the frontline, environmental risks are magnified due to the lack of ongoing maintenance and capacity for risk reduction measures. Of particular concern are the implications for the plant’s waste infrastructure: the chemical and sludge storage ponds, the damaged wastewater treatment facility and the adjacent treatment ponds.
The lower resinous layer of waste in tailings ponds can contain toxic organic compounds. In extreme weather, there may be spillages and run-off into local watercourses or alternatively solid fractions may be windblown when dried out. The absence of ongoing water level management makes these events more likely. Tailings dams can also be damaged or destroyed, risking catastrophic discharges of highly contaminated waters and tailings. The plant’s sludge storage facility is around 200m from a tributary to the Kamianske River and dam failure could impact downstream settlements and water sources. These deposits can also be a fire risk, with fires generating toxic smoke plumes and depositing pollutants.
Other site components can also release pollutants – for example in January 2023 the ash disposal area was shelled as military forces advanced towards the plant.
Dis/mis-information watch
There were a range of online claims concerning the extent to which the facility was being used for military purposes by the Armed Forces of Ukraine, including whether its coke plant was being used as an ammunition store.
External resources
Devastation in Avdiivka: Mapping damage to civilian infrastructure since the full-scale invasion | CIR
What to Know About the Fall of Avdiivka | NYT
Donbas tailings storage facilities | OSCE
Return to the country map here.
- From the 10th October 2023, Russian forces began an offensive to encircle the city of Avdiivka. On the 17th February 2024 Ukrainian forces withdrew after months of intensive fighting that left much of the city in ruins.
- Naphthalene is a hazardous organic compound derived from coal tar.
- This was calculated by analysing the intersection between built structure polygons, obtained from a combination of OpenStreetMap and Microsoft Buildings, and damage mapping produced by Jamon Van Den Hoek (Oregon State University) and Corey Scher (City University of New York), derived from Sentinel-1 data. Visual inspection of very high resolution satellite imagery shows that this method underestimates damage. The estimate of 22% of buildings is in excess of the 45 visibly damaged buildings identified by a UNOSAT remote assessment on the 20th September 2022.
- Emissions monitoring until 2014 revealed that solid particles of dust, sulphur dioxide, hydrogen sulphide, nitrogen oxides, carbon monoxide, ammonia, phenol, hydrogen cyanide, benzene, naphthalene, and benzo[a]pyrene (a known carcinogen) were being released from the plant into the atmosphere. A 2019 study measured these combustion products and the heavy metals deposited onto the soils adjacent to the plant. There were recorded values of 3.0 mg/kg of Cu in more than 25% of samples – within a 20 km zone – this value represents the maximum permissible regulatory concentration and thus presents a significant risk to crop production. Furthermore, studies have recorded hazardous organic and inorganic chemicals in soils, bottom sediments, streams and ponds in locations in close proximity to both the Avdiivka and nearby Makiivka coke plants.
